Most Popular Products
Badminton Court Light
Badminton Court Light Specification
- Beam
- 120
- Cable Type
- 3 core
- Material
- metal
- Frequency
- 50 Hertz (HZ)
- Housing
- METAL
- Warranty
- 2
- Color Temperature
- 2700- 6500 Kelvin (K)
- Shape
- RECTANGLE
- Power Supply
- 230V AC
- Rated Voltage
- 230 Volt (V)
- Phase
- SINGLE
- Operating Temperature
- -20 TO 70 Celsius (oC)
- IP Rating
- IP65
- Light Color
- white
- Life Span
- 50000
- Usage & Applications
- Indoor stadium like tennis , badminton, basketball , pickle ball.
- Rated Current
- 0.43 Ampere (amp)
- Product Type
- LED
- Power Factor
- 0.95
- Input Voltage
- 230 Volt (V)
- Working Temperature
- -20 TO 70 Celsius (oC)
- Lamp Power
- 100 Watt (W)
- Application
- indoor Stadium
- Size
- 3 X 1 FEET
- Dimension (L*W*H)
- 3 x 1 Foot (ft)
- Weight
- 6 Kilograms (kg)
- Color
- 2700 - 6500k
- LED Type
- SMD
Badminton Court Light Trade Information
- Minimum Order Quantity
- 2 Pieces
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 100 Pieces Per Week
- Delivery Time
- 5 Days
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- STANDARD PACKING WITH BOX AND 2 CLAMP.
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- CE,ROHS,ISO.
About Badminton Court Light
Wattage- 100WReplaces HID Wattage - 250Model Name/Number - 100 WATT BADMINTON COURT LIGHTAmperage Draw - 0.45ABeam Angle - 120 degreeBody Material - Metal body with Full size aluminium Led PcbLighting Type - LEDInput Voltage - 230VACWarranty - 2 YEARSFeatures - HIGH BRIGHTNESS, HEAVY BODY, POWDER COATED BODY,EASY INSTALLATIONDriver - IP66 WATERPROOF DRIVERSLuminous Flux - >130 LMHousing - Metal body with Full size aluminium Led PcbCasting Weight - 5 KGTotal Weight - 6 KGCertification - ISO,CE,ROHS,TMInstall Style - WALL MOUNT,HANGING,CEILING MOUNT,CLAMP MOUNTWorking Temp : -20 TO 70Light Life - 50000 HRSCRI - >80Surge Protection - 6KV + 10KVOperating Frequency - 50HZOperating Voltage - 230VACColor Temperature - 6500KFrequency - 50HZMounting Options - WALL MOUNT,HANGING,CEILING MOUNT,CLAMP MOUNTTotal Harmonic Distortion - <10%Diffuser - ANTIGLARE DIFFUSERPower Factor - >0.95Country of Origin - Made in India GENERAL INFORMATION Order Code - SW-100WPANEL-31Make - SINEWAVE TECHNOLIGHTCountry of Origin - INDIALighting Source & Type - SMD 2835 LED 0.2WNumber of LED - 500 OPTICAL PARAMETERS Led Beam Angle - 120 DegreeCRI (Color Rendering Index) - >80LED Life Span - >60000 HoursColor - White/Warm White/Cool White (As Per Order)Color Temperature - 2700-6500K(As Per Order)Led Voltage/Current - 3.2V/60mALED Make - Bridge luxOptical Lens - NALuminous Efficiency - 140 Lm/WTotal Lumens - 14000(5%)Optical Efficiency - >93%Thermal Efficiency - >90% ELECTRICAL PARAMETERSWide Input Voltage Range - 90-310VAC(With Auto Cutoff)Operating Frequency - 50/60HZPower Consumption - 100 WattPower Factor - >0.95THD - <10%Driver Surge Protection - 4-6KVExternal Surge Protection - 10KV (As per Requirement)FAQs of Badminton Court Light:
Q: What is the rated voltage and power supply for the Badminton Court Light?
A: The rated voltage is 230 Volt (V), and the power supply is 230V AC.Q: What is the lifespan and warranty period of the Badminton Court Light?
A: The lifespan is 50,000 hours, and the product comes with a 2-year warranty.Q: What is the color temperature range and light color offered by the Badminton Court Light?
A: The color temperature range is 2700-6500 Kelvin (K), and the light color is white.Q: What is the IP rating of the Badminton Court Light, and is it suitable for indoor stadium applications?
A: The IP rating is IP65, and the light is suitable for indoor stadiums like badminton, tennis, basketball, and pickleball.Q: What are the dimensions and weight of the Badminton Court Light?
A: The dimensions are 3 x 1 feet, and the weight is 6 kilograms.Q: What type of LED is used, and what beam angle does the Badminton Court Light have?
A: The LED type is SMD, and the beam angle is 120 degrees.Q: What is the operating temperature range and material housing of the Badminton Court Light?
A: The operating temperature range is -20 to 70 Celsius (C), and the housing is made of metal.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Tennis Court led light & Badminton Court Led Light Category

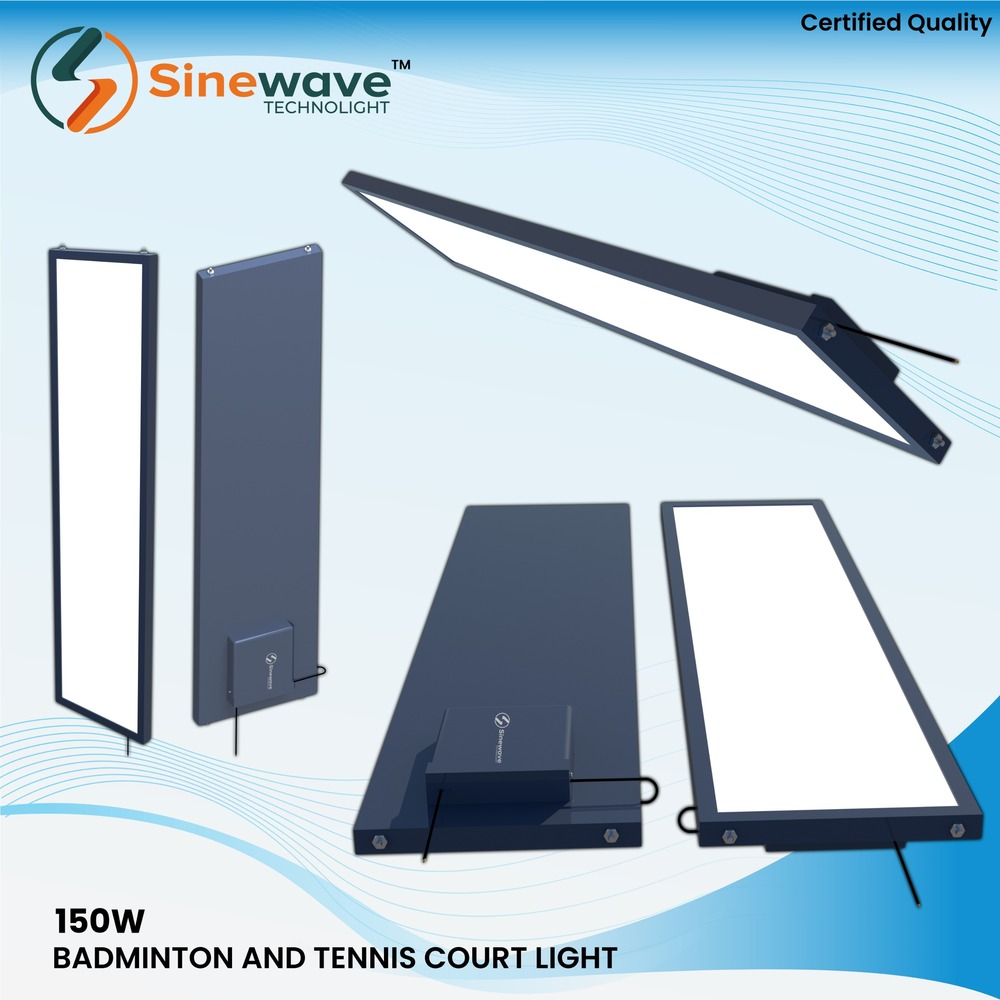

Badminton court lighting - Tennis Court Lighting
Price 4300.0 INR / Piece
Minimum Order Quantity : 8 Pieces
Input Voltage : 230 Volt (V)
Size : 3 X 1 FEET
Product Type : LED
Material : metal
Indoor Stadium LED Light for Basket Ball Court
Price 4300 INR / Piece
Minimum Order Quantity : 6 Pieces
Input Voltage : 230 Volt (V)
Material : metal
Pickleball court Led Lights
Price 4690 INR / Piece
Minimum Order Quantity : 6 Pieces
Size : Standard
Product Type : Pickleball court Led Lights
Material : Metal
150W Led Badminton Court Light
Price 5500 INR / Piece
Minimum Order Quantity : 25 Pieces
Input Voltage : 230v Volt (V)
Size : Standard
Product Type : 150W Led Badminton Court Light
