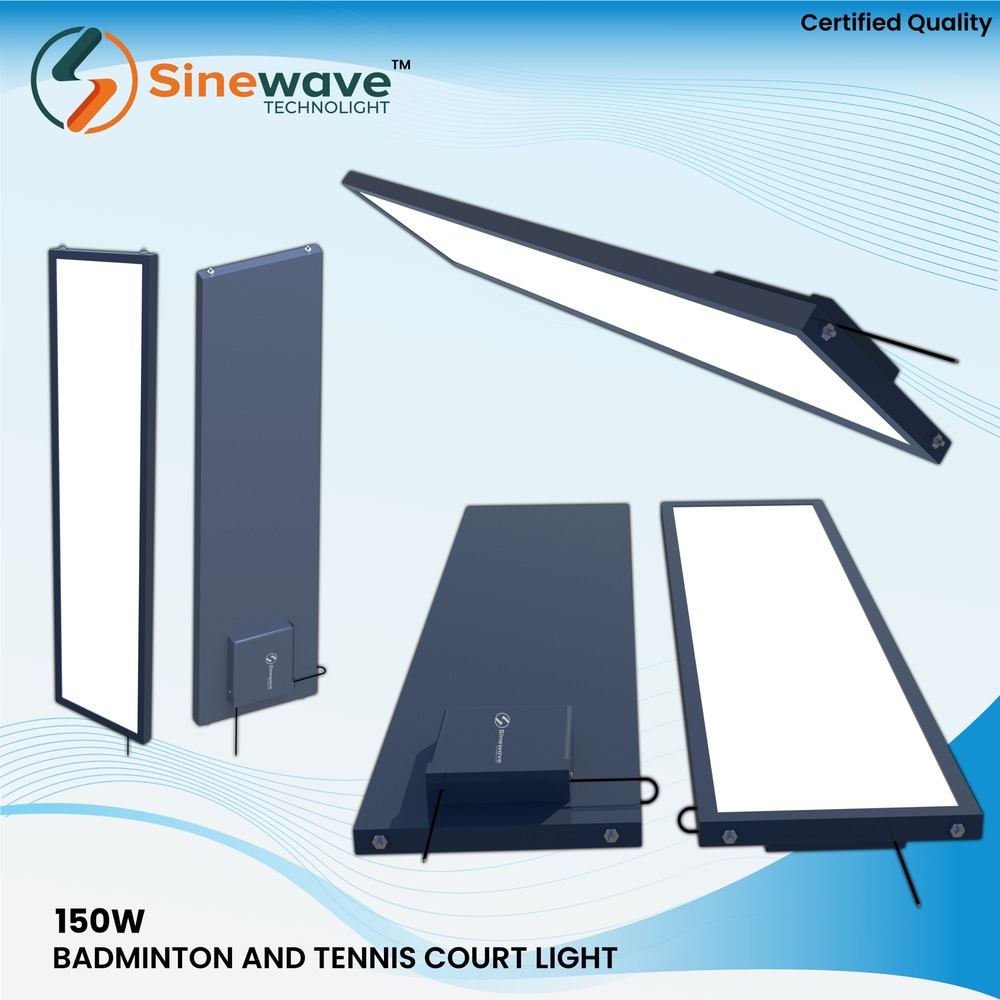

Badminton court lighting - Tennis Court Lighting

Badminton court lighting - Tennis Court Lighting Specification

Rated Current
230 Volt (v)

Phase
SINGLE

Rated Voltage
230 Volt (V)

Color Temperature
2700- 6500 Kelvin (K)

Warranty
2

Control Type
Other

IP Rating
IP65

Shape
RECTANGLE

Cable Type
3 core

Material
metal

Light Color
white

Beam
120

Frequency
50 Hertz (HZ)

Life Span
50000

Usage & Applications

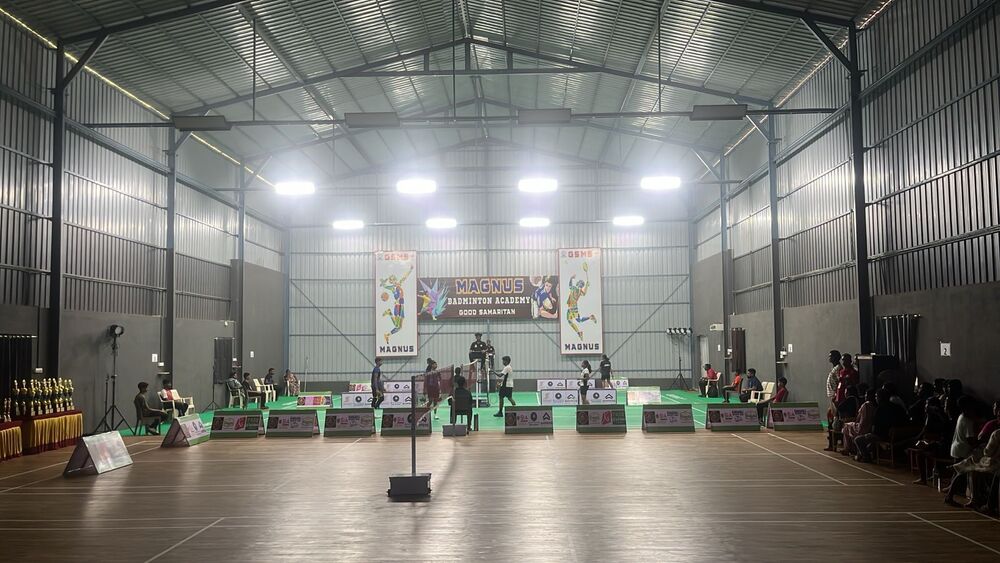

Indoor stadium like tennis , badminton, basketball , pickle ball.

Power Supply
230V AC

Housing
METAL

Operating Temperature
-20 TO 70 Celsius (oC)

Product Type
LED

Power Factor
0.95

Input Voltage
230 Volt (V)

Working Temperature
-20 TO 70 Celsius (oC)

Lamp Power
100 Watt (W)

Application
indoor Stadium

Size
3 X 1 FEET

Dimension (L*W*H)
3 x 1 Foot (ft)

Weight
6 Kilograms (kg)

Color
2700 - 6500k

LED Type
SMD

Badminton court lighting - Tennis Court Lighting Trade Information

Minimum Order Quantity
8 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
100 Pieces Per Week

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
STANDARD PACKING 4 PIECE IN 1 BOX

Main Export Market(s)
Asia, Australia, Central America, South America, Africa

Main Domestic Market
All India

Certifications
ISO, CE , ROHS.

About Badminton court lighting - Tennis Court Lighting

Wattage- 100WReplaces HID Wattage - 250Model Name/Number - 100 WATT BADMINTON COURT LIGHTAmperage Draw - 0.45ABeam Angle - 120 degreeBody Material - Metal body with Full size aluminium Led PcbLighting Type - LEDInput Voltage - 230VACWarranty - 2 YEARSFeatures - HIGH BRIGHTNESS, HEAVY BODY, POWDER COATED BODY,EASY INSTALLATIONDriver - IP66 WATERPROOF DRIVERSLuminous Flux - >130 LMHousing - Metal body with Full size aluminium Led PcbCasting Weight - 5 KGTotal Weight - 6 KGCertification - ISO,CE,ROHS,TMInstall Style - WALL MOUNT,HANGING,CEILING MOUNT,CLAMP MOUNTWorking Temp : -20 TO 70Light Life - 50000 HRSCRI - >80Surge Protection - 6KV + 10KVOperating Frequency - 50HZOperating Voltage - 230VACColor Temperature - 6500KFrequency - 50HZMounting Options - WALL MOUNT,HANGING,CEILING MOUNT,CLAMP MOUNTTotal Harmonic Distortion - <10%Diffuser - ANTIGLARE DIFFUSERPower Factor - >0.95Country of Origin - Made in India GENERAL INFORMATION Order Code - SW-100WPANEL-31Make - SINEWAVE TECHNOLIGHTCountry of Origin - INDIALighting Source & Type - SMD 2835 LED 0.2WNumber of LED - 500 OPTICAL PARAMETERS Led Beam Angle - 120 DegreeCRI (Color Rendering Index) - >80LED Life Span - >60000 HoursColor - White/Warm White/Cool White (As Per Order)Color Temperature - 2700-6500K(As Per Order)Led Voltage/Current - 3.2V/60mALED Make - Bridge luxOptical Lens - NALuminous Efficiency - 140 Lm/WTotal Lumens - 14000(5%)Optical Efficiency - >93%Thermal Efficiency - >90% ELECTRICAL PARAMETERSWide Input Voltage Range - 90-310VAC(With Auto Cutoff)Operating Frequency - 50/60HZPower Consumption - 100 WattPower Factor - >0.95THD - <10%Driver Surge Protection - 4-6KVExternal Surge Protection - 10KV (As per Requirement)
